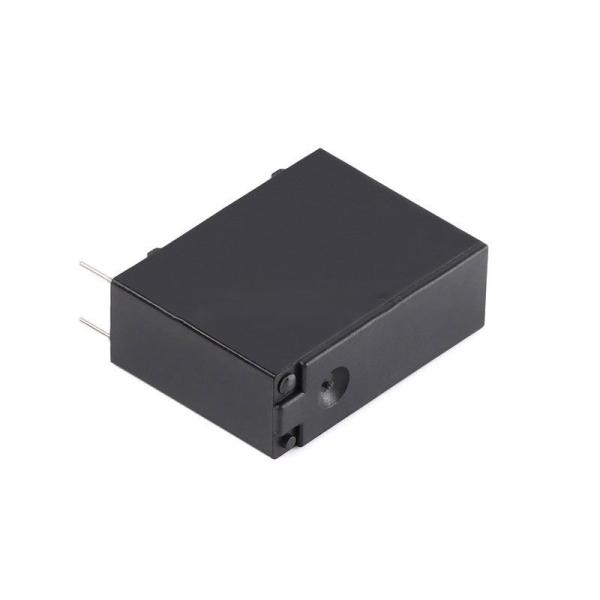

Ultra-small medium power relay HF46F series
The width of the 5A contact switching capability does not exceed
7.2mm, suitable for high-density installation. The surge voltage
resistance between the coil and the contact is 10kV, meeting the
enhanced insulation requirements of VDE0631. High sensitivity Power
consumption is only 200mm. Insulation class: F-class insulation
class is available for selection. Environmentally friendly products
(compliant with RoHS). Dimensions :(20.5x7.2x15.3)mm
Performance parameters
Insulation resistance
Medium pressure resistance
The coil and the contact are disconnected between the contacts
Surge voltage (between the coil and the moving contact) Operating
time (at rated voltage)
Release time (at rated voltage)
Impact (1
Stability
"Strength"
Vibration (1
Humidity
Temperature range
Lead-out method
Weight
Encapsulation method
1000M2 (500VDC
4000VAC 1 min
1000VAC 1 min
10kV (1.2/50us
<10ms
<10ms
98m/s?
980m/s?
10Hz to 55Hz, 1.5mm dual amplitude
5%~85%RH
-40℃~85°C
Printed plate type
About 39
Plastic-sealed type
Contact form
Contact resistance
Contact material
Contact load (resistive
Maximum switching voltage
Maximum switching current
Maximum switching power
Mechanical durability
Electrical durability
1H
<100m2(1A 6VDC)
AgSnO2, AgNi
3A 250VAC130VDC
5A 250VAC/30VDC
277VAC /30VDC
5A
1385VA/150W
5x10 "times
1x 10' times (AgNi, 5A 250VAC resistive load, 85℃, 1s on, 1s
off)5x10 times (AgSnO2,5A 250VAC resistive load, 85℃, 3s on, 3s
off)
