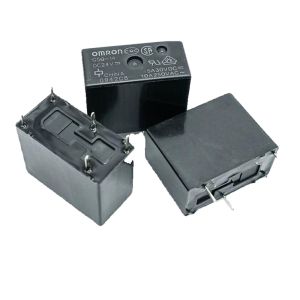

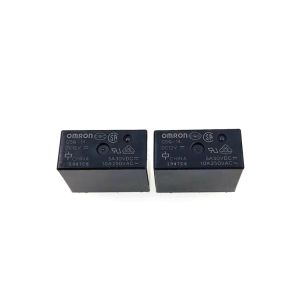

Miniature Power Relay with 1-pole 10A Switching Capacity G5Q-14
Miniature Power Relay with
1-pole 10A Switching Capacity
• Excellent switching performance for a variety of loads.
• Small, yet provides 8-kV impulse withstand voltage (between coil
and contacts).
• Low coil power consumption (SPST-NO: 200 mW, SPDT: 400 mW)
• Coil insulation system: Class F (UL1446).
• IEC/EN 60335-1 conformed. (-HA Model)
• Reduced power consumption with voltage holding and pulse width
modulation (PWM) control (Only for G5Q-@-PW model)
●Coil Voltage Reduction (Holding Voltage) after Relay
operation
• If the coil voltage is reduced to the holding voltage after relay
operation, first apply the rated voltage to the coil for at least
100 ms, as shown below.
• A voltage of at least 40% (G5Q-1A type) /30% (G5Q-1 type) of
the rated voltage is required for the coil holding voltage.
Do not allow voltage fluctuations to cause the coil holding volt
age to fall below this level.
Category | |
|
Mfr | | |
Series | | |
Packaging | | |
Part Status | | |
Mounting Type | | |
Coil Voltage | | |
Contact Form | | |
Contact Rating (Current) | | |
Switching Voltage | | |
Load - Max Switching | | |
Coil Current | | |
Coil Type | | |
Termination Style | | |
Seal Rating | | |
Coil Insulation | | |
Must Operate Voltage | | |
Must Release Voltage | | |
Operate Time | | |
Release Time | | |
Operating Temperature | | |
Contact Material | | |
Approval Agency | | |
Relay Type | | |
Coil Resistance | | |
Base Product Number | |
|
