WiFi module iot 4G all-network CAT1 network remote control wireless
communication module EC200NCNLA-N05-SNNSA

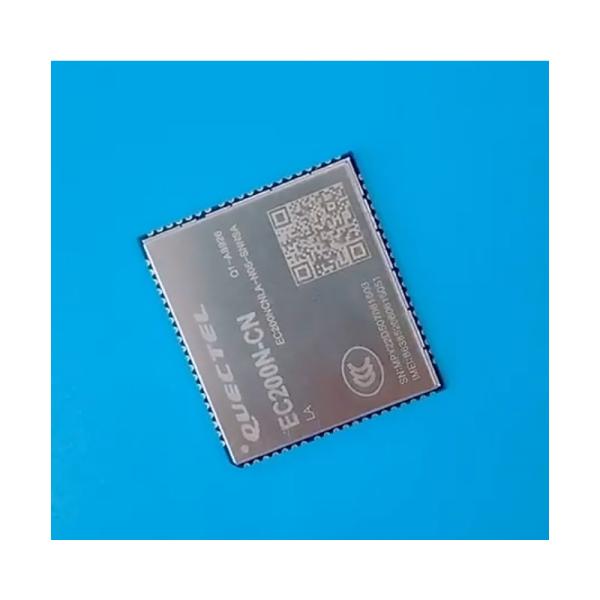

EC200N-CN is an LTECat1 wireless communication module designed by
Quectel specifically for the M2M and IoT fields, supporting a
maximum downlink rate of 10Mbps and
The maximum uplink rate is 5 Mbps, offering an extremely high cost
performance. Meanwhile, it is compatible with Quectel's LTE
Standard EC200S series and EC2x in terms of packaging
The (EC25, EC21, EC20 R2.1 and EC20-CN) series and EG22-G (EG21-G
and EG25-G) modules can achieve seamless integration between
different networks
Switch.
The EC200N-CN adopts laser engraving technology. Laser engraving
technology features a more aesthetically pleasing appearance, a
stronger metallic texture, better heat dissipation, less
information being erased, and greater energy efficiency
It has the advantages of adapting to the demands of automation,
etc.
The EC200N-CN is equipped with a rich set of network protocols,
integrates multiple industrial standard interfaces, and supports
various driver and software functions (such as Windows)
The USB driver under operating systems such as 7/8/8.1/10, Linux
and Android has greatly expanded its application scope in the M2M
and IoT fields.
Such as OTT, CPE, routers, data cards, tablet computers,
intelligent security and industrial-grade PDAs, etc.
Main advantages
Designed specifically for M2M and IoT applications
Support DFOTA remote online upgrade to reduce the later operation
and maintenance costs
Supports Wi-Fi Scan positioning
Ultra-high cost performance
Support GNSS function (optional)
Supports Bluetooth function * (optional)
Region/Operator: China/India
Encapsulated LCC
Module dimensions (mm) : 29.0 × 32.0 × 2.4
The weight (g) is approximately 3.9
Temperature range
Operating temperature: -35 °C to +75 °C
Extended temperature range: -40 °C to +85 °C
Frequency band information
LTE-FDD B1/B3/B5/B8
LTE-TDD B34/B38/B39/B40/B41
GSM/EDGE (optional) B3/B8
GNSS (optional) GPS/ BDS
Low Energy Bluetooth * (optional) Bluetooth 5.0
Certification
Operator certification in China: Telecom database entry
Compulsory Certification in China: SRRC/NAL/CCC
Other certified WHQL
Data transmission rate
LTE-FDD (Mbps) 10 (Downlink) / 5 (uplink)
LTE-TDD (Mbps) 7.5 (Downlink) / 1 (Uplink)
EDGE (kbps)
GPRS (kbps)
Interface
(U)SIM × 1, 1.8/3.0V
UART × 2
USB 2.0 × 1
PCM (Digital Audio) × 1
I2C × 1
Analog audio interface input: × 1; Output: × 1
Antenna interfaces × 3 (main antenna, GNSS* (optional), Bluetooth *
(optional))
Audio
Audio codec modes: MP3/AMR/WAV
Audio: Digital audio/analog audio
Outstanding features
DTMF support
DFOTA support
Audio playback/audio recording support
QuecFile® is supported
VoLTE support
(U)SIM card detection support
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets
according to their own requirements.
