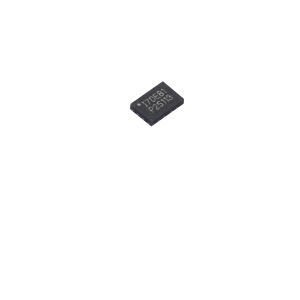

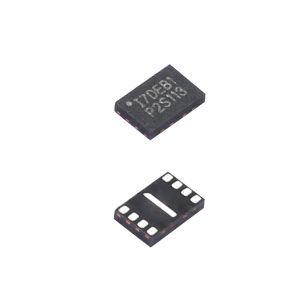

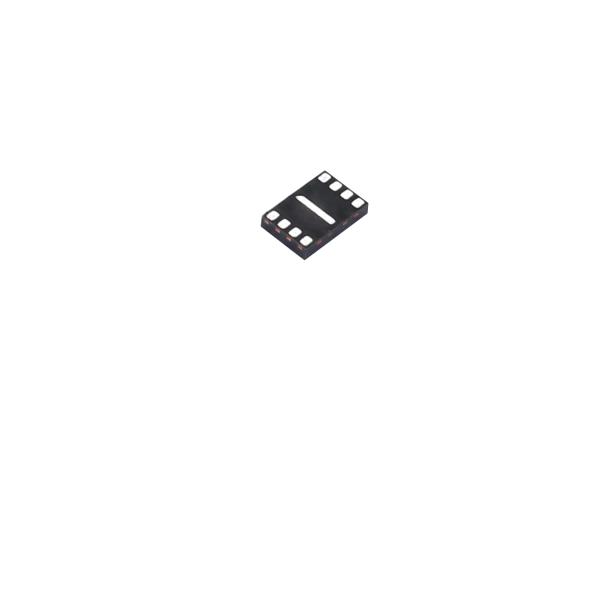

16Mb SERIAL FLASH MEMORY WITH 133MHZ SPI QUAD I/O QPI DTR INTERFACE NOR FLASH IS25WP016D-JULE-TR

FEATURES
 Industry Standard Serial Interface - IS25LP016D: 16Mbit/2Mbyte - IS25WP016D: 16Mbit/2Mbyte - 256 bytes per Programmable Page - Supports standard SPI, Fast, Dual, Dual
I/O, Quad, Quad I/O, SPI DTR, Dual I/O
DTR, Quad I/O DTR, and QPI - Supports Serial Flash Discoverable
Parameters (SFDP)

 High Performance Serial Flash (SPI) - 50MHz Normal and 133Mhz Fast Read - 532 MHz equivalent QPI - DTR (Dual Transfer Rate) up to 66MHz - Selectable Dummy Cycles - Configurable Drive Strength - Supports SPI Modes 0 and 3 - More than 100,000 Erase/Program Cycles - More than 20-year Data Retention

 Flexible & Efficient Memory Architecture - Chip Erase with Uniform: Sector/Block
Erase (4/32/64 Kbyte) - Program 1 to 256 Bytes per Page - Program/Erase Suspend & Resume

 Efficient Read and Program modes - Low Instruction Overhead Operations - Continuous Read 8/16/32/64-Byte
Burst Wrap - Selectable Burst Length - QPI for Reduced Instruction Overhead - AutoBoot Operation
 Low Power with Wide Temp. Ranges - Single Voltage Supply
IS25LP: 2.30V to 3.60V
IS25WP: 1.65V to 1.95V - 4 mA Active Read Current (typ.) - 5 µA Standby Current (typ.) - 1 µA Deep Power Down (typ.) - Temp Grades:
Extended: -40°C to +105°C
Auto Grade (A3): -40°C to +125°C


 Advanced Security Protection - Software and Hardware Write Protection - Power Supply Lock Protect - 4x256-Byte Dedicated Security Area
with OTP User-lockable Bits - 128 bit Unique ID for Each Device
(Call Factory)

 Industry Standard Pin-out & Packages(1,2) - B = 8-pin SOIC 208mil - N = 8-pin SOIC 150mil - V = 8-pin VVSOP 150mil - K = 8-contact WSON 6x5mm - U = 8-contact USON 2x3mm - T = 8-contact USON 4x3mm - M = 16-pin SOIC 300mil (Call Factory) - L = 8-contact WSON 8x6mm - G= 24-ball TFBGA 6x8mm 4x6(Call
Factory) - H = 24-ball TFBGA 6x8mm 5x5 (Call
Factory) - KGD (Call Factory)

Notes:
1. Call Factory for other package options available.
2. For the dedicated RESET# option, see the Ordering
Information.
