512K x 16 LOW VOLTAGE ULTRA LOW POWER CMOS Static Random Access Memory SRAM IS62WV51216BLL-55TLI

FEATURES
• High-speed access time: 45ns, 55ns
• CMOS low power operation– 36 mW (typical) operating– 12 µW (typical) CMOS standby
DESCRIPTION
The ISSI IS62WV51216ALL/ IS62WV51216BLL are high
speed, 8M bit static RAMs organized as 512K words by 16
bits. It is fabricated using ISSI's high-performance CMOS
technology. This highly reliable process coupled with
innovative circuit design techniques, yields high
performance and low power consumption devices.
• TTL compatible interface levels
• Single power supply– 1.65V--2.2V VDD (62WV51216ALL)– 2.5V--3.6V VDD (62WV51216BLL)
• Fully static operation: no clock or refresh
required
• Three state outputs
• Data control for upper and lower bytes
• Industrial temperature available
• Lead-free available
When CS1 is HIGH (deselected) or when CS2 is LOW
(deselected) or when CS1 is LOW, CS2 is HIGH and both
LB and UB are HIGH, the device assumes a standby mode
at which the power dissipation can be reduced down with
CMOS input levels.
Easy memory expansion is provided by using Chip Enable
and Output Enable inputs. The active LOW Write Enable
(WE) controls both writing and reading of the memory. A
data byte allows Upper Byte (UB) and Lower Byte (LB)
access.

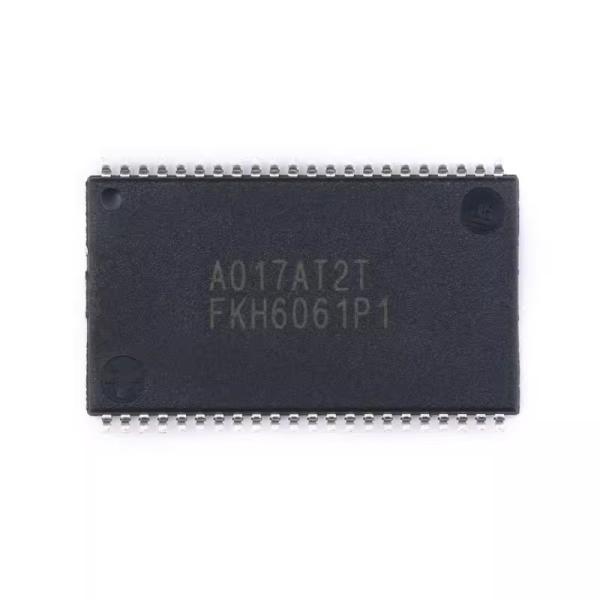

The IS62WV51216ALL and IS62WV51216BLL are packaged
in the JEDEC standard 48-pin mini BGA (7.2mm x 8.7mm)
and 44-Pin TSOP (TYPE II).

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
