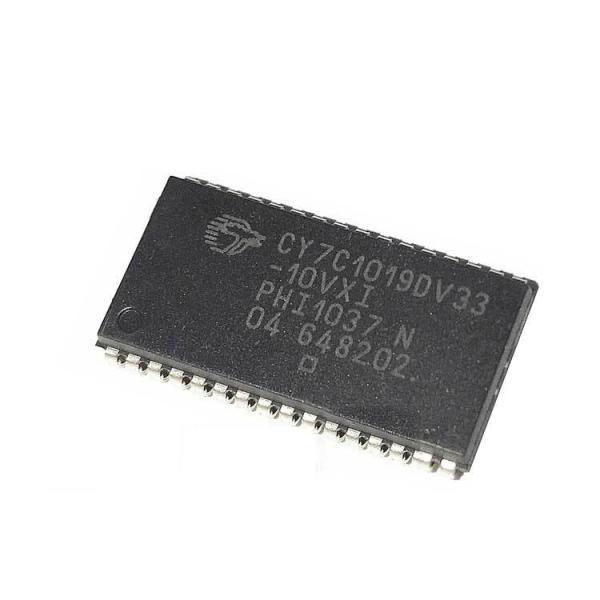

SRAM 1Mbit Static RAM High-performance COMS Static Random Access
Memory CY7C1019DV33-10VXI
Features■ Pin- and function-compatible with CY7C1018CV33
andCY7C1019CV33■ High speed❐ tAA = 10 ns■ Low Active Power❐ ICC =
60 mA @ 10 ns■ Low CMOS Standby Power❐ ISB2 = 3 mA■ 2.0 V Data
retention■ Automatic power-down when deselected■ CMOS for optimum
speed/power■ Center power/ground pinout■ Easy memory expansion with
CE and OE options■ Available in Pb-free 32-pin 400-Mil wide Molded
SOJ, 32-pinTSOP II and 48-ball VFBGA packages
Functional DescriptionThe CY7C1018DV33/CY7C1019DV33 is a
high-performanceCMOS static RAM organized as 131,072 words by 8
bits. Easymemory expansion is provided by an active LOW Chip
Enable(CE), an active LOW Output Enable (OE), and
three-statedrivers. This device has an automatic power-down feature
thatsignificantly reduces power consumption when deselected.Writing
to the device is accomplished by taking Chip Enable (CE)and Write
Enable (WE) inputs LOW. Data on the eight I/O pins(I/O0 through
I/O7) is then written into the location specified onthe address
pins (A0 through A16).Reading from the device is accomplished by
taking Chip Enable(CE) and Output Enable (OE) LOW while forcing
Write Enable(WE) HIGH. Under these conditions, the contents of the
memorylocation specified by the address pins will appear on the I/O
pins.The eight input/output pins (I/O0 through I/O7) are placed in
ahigh-impedance state when the device is deselected (CE HIGH),the
outputs are disabled (OE HIGH), or during a write operation(CE LOW,
and WE LOW).The CY7C1018DV33/CY7C1019DV33 are available in
Pb-free32-pin 400-Mil wide Molded SOJ, 32-pin TSOP II and
48-ballVFBGA packages.For a complete list of related documentation,
click here
Packaging and transportation instructions
- According to the standard export packaging.
Customers can choose from cartons, wooden cases and wooden pallets
according to their own requirements.
