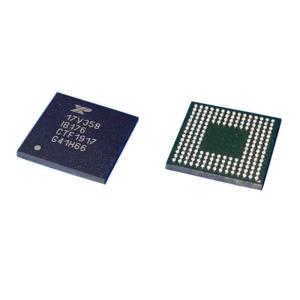

Single-chip 8-channel PCI UART Interface Integrated Circuit 256Byte FIFO XR17V358IB176-F

GENERAL DESCRIPTION
The XR17V3581 is a single chip 8-channel PCI
Express (PCIe) UART (Universal Asynchronous
Receiver and Transmitter), optimized for higher
performance and lower power. The XR17V358
serves as a single lane PCIe bridge to 8 independent
enhanced 16550 compatible UARTs. The XR17V358
is compliant to PCIe 2.0 Gen 1 (2.5 GT/s).
In addition to the UART channels, the XR17V358 has
16 multi-purpose I/Os (MPIOs), a 16-bit general
purpose counter/timer and a global interrupt status
register to optimize interrupt servicing.
Each UART of the XR17V358 has many enhanced
features such as the 256-bytes TX and RX FIFOs,
programmable Fractional Baud Rate Generator,
Automatic Hardware or Software Flow Control, Auto
RS-485 Half-Duplex Direction Control, programmable
TX and RX FIFO Trigger Levels, TX and RX FIFO
Level Counters, infrared mode, and data rates up to
31.25 Mbps. The XR17V358 is available in a 176-pin
FPBGA package (13 x 13 mm).
NOTE 1: Covered by U.S. Patents #5,649,122, #6,754,839,
#6,865,626 and #6,947,999
APPLICATIONS
 Next generation Point-of-Sale Systems
 Remote Access Servers
 Storage Network Management
 Factory Automation and Process Control
 Multi-port RS-232/RS-422/RS-485 Cards

FEATURES
 Single 3.3V power supply
 Internal buck regulator for 1.2V core
 PCIe 2.0 Gen 1 compliant
 x1 Link, dual simplex, 2.5 Gbps in each direction
 Expansion bus interface
 EEPROM interface for configuration
 Global interrupt status register for all eight UARTs
 Up to 31.25 Mbps serial data rate
 16 multi-purpose inputs/outputs (MPIOs)
 16-bit general purpose timer/counter
 Sleep mode with wake-up Indicator
 Eight independent UART channels controlled with
■ 16550 compatible register Set
■ 256-byte TX and RX FIFOs
■ Programmable TX and RX Trigger Levels
■ TX/RX FIFO Level Counters
■ Fractional baud rate generator
■ Automatic RTS/CTS or DTR/DSR hardware
flow control with programmable hysteresis
■ Automatic Xon/Xoff software flow control
■ RS-485 half duplex direction control output
with programmable turn-around delay
■ Multi-drop with Auto Address Detection
■ Infrared (IrDA 1.1) data encoder/decoder
 Software compatible to XR17C15x, XR17D15x,
XR17V25x PCI UARTs
