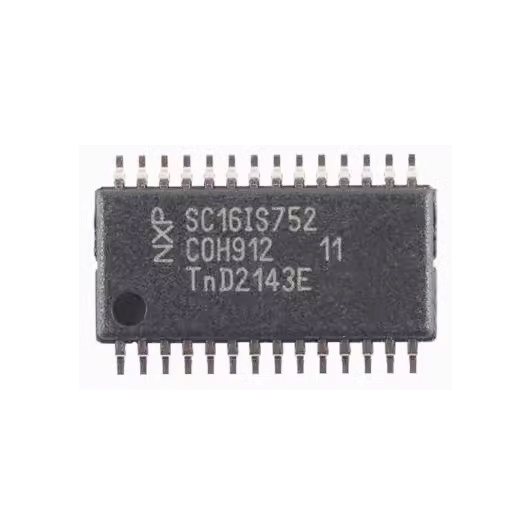

Dual UART with I2C-bus SPI interface 64 bytes of transmit and receive FIFOs IrDA SIR UART IC SC16IS752IPW,128

General description
Product data sheet
The SC16IS752/SC16IS762 is an I2C-bus/SPI bus interface to a dual-channel high performance UART offering
data rates up to 5 Mbit/s, low operating and sleeping current; it also provides the application with 8 additional
programmable I/O pins. The device comes in very small HVQFN32 and TSSOP28 packages, which makes it
ideally suitable for hand-held, battery-operated applications. This chip enables seamless protocol conversion
from I2C-bus/SPI to RS-232/RS-485 and is fully bidirectional.
The SC16IS762 differs from the SC16IS752 in that it supports SPI clock speeds up to 15 Mbit/s instead of the 4
Mbit/s supported by the SC16IS752, and in that it supports IrDA SIR up to 1.152 Mbit/s. In all other aspects, the
SC16IS762 is functionally and electrically the same as the SC16IS752.
The SC16IS752/SC16IS762’s internal register set is backward compatible with the widely used and widely
popular 16C450. This allows the software to be easily written or ported from another platform.
The SC16IS752/SC16IS762 also provides additional advanced features such as auto hardware and software
flow control, automatic RS-485 support and software reset. This allows the software to reset the UART at any
moment, independent of the hardware reset signal.
2
Features and benefits
2.1 General features
• Dual full-duplex UART
• I2C-bus or SPI interface selectable
• 3.3 V or 2.5 V operation
• Industrial temperature range: -40 °C to +95 °C
• 64 bytes FIFO (transmitter and receiver)
• Fully compatible with industrial standard 16C450 and equivalent
• Baud rates up to 5 Mbit/s in 16× clock mode
• Auto hardware flow control using RTS
/CTS
• Auto software flow control with programmable Xon/Xoff characters
• Single or double Xon/Xoff characters
• Automatic RS-485 support (automatic target address detection)
• Up to eight programmable I/O pins
• RS-485 driver direction control via RTS
signal
• RS-485 driver direction control inversion
• Built-in IrDA encoder and decoder supporting IrDA SIR with speeds up to 115.2 kbit/s
