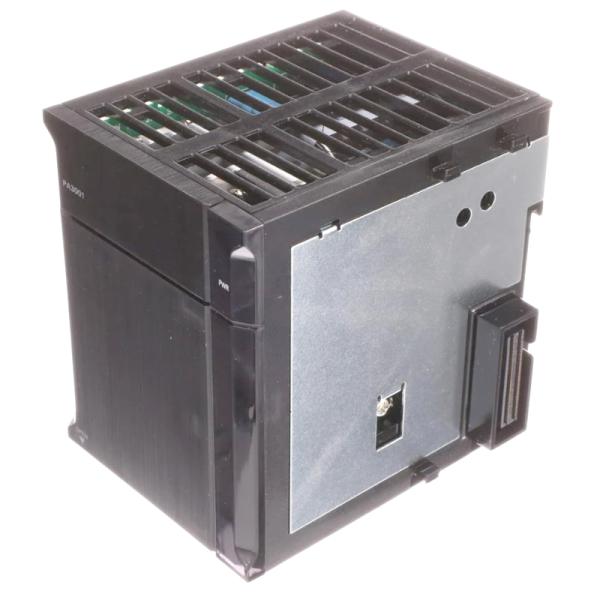

PLC Programming Powerful Power Supply Unit To Supply Stable Power Controller NJ-Series Power Supply Unit NJ-PA/PD NJ-PA3001

Powerful power supply unit to supply
stable power to the NJ-series controller.
Stable power supply is available from the NJ-series
CPU Unit to each I/O Unit via the dedicated bus.
Lineups are provided for AC and DC input types with 30 W output.

Features
CSM_NJ-PA_PD_DS_E_1_2
NJ-PD3001
• AC input type (100 to 240 VAC)/DC input type (24 VDC) with 30 W output allows power supply to large-scale configurations.
• Operating output contact indicates the CPU operation status (available in all models)

Ordering Information
International Standards
• The standards are abbreviated as follows: U: UL, U1: UL(Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus
(Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards

Accessories
There is no accessory for the NJ-series Power Supply Unit

RUN output
Supply 100 to 240 VAC (allowable: 85 to 264 VAC).
The NJ-PA3001 has a wide input range, so it does not have voltage switching terminals.
DC Input
Supply 24 VDC (allowable: 19.2 to 28.8 VDC.)
LG
Ground to a resistance of 100 Ω or less to increase noise resistance and avoid electric shock.
GR
Ground to a resistance of 100 Ω or less to avoid electric shock.
RUN Output
The internal contacts for the RUN output turn ON when the CPU Unit is in RUN status

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
