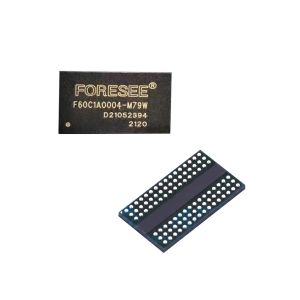

Dynamic Random Access Memory DRAM Industrial F60C1A0004-M7 DDR3L X16 4Gb F60C1A0004-M79W

Device Features
Density:4G bits
Organization
256Meg x 16 bils
Package
96-balI FBGA
Lead-free (RoHS compliant) and Halogen-free
Power supply
VDD/VDDQ =1.35V(1.283 to 1.45V)
Backward compatible DDR3 (1.5V)operation
Data Rate:
1600Mbps,1866MbpS
2KB page size (x16)
Row address: A0 to A14
Column address: A0 to A9
Eightinternal banks for concurrent operationBurst lengths(BL):8 and 4 with Burst Chop(BC)
Burst type(BT)Sequential (8, 4 with BC)Interleave i8, 4 with BC)CAs Latency(cL):5,6,7,8,9,10,11,12, 1314
CAS Write Latency(CWL):5,6,7,8, 9,10Auto precharge option for each burst accessDriver strength:RZQ17,RZQ/6(RZQ=240Ω)Rofresh:auto-refresh,solf-refresh
Average refresh period
7.8us atTC ≤ +85'C
3.9us at +85°C ≤TC ≤+95°C
Operating temperature range
Tc = 0°C to +85°C(Commercial)
Tc=-40°C to +95'C/Industrial)
The high-speed data transfer is realized by
the 8bits prefetch pipelined architecture
Double data-rate architocture: two data
transfers per clock cycle
Bi-directional differential data strobe (DQSand DQS#)is transmittedireceived with datafor capturing data at the receiver
DQS is edge-aligned with data for READs;center aligned with data for WRITES
Differential clock inputs (CK and CK#)
DLL aligns DQ and DQS transitions with CKtransitions
Commands entered on each positive CKedge; data and data mask referenced to bothedges of Das
Data mask (DM) for write data
Posted CAS by programmable additivelatency for better command and data busefficiency
On-Die Termination (ODT) for better signalquality
Synchronous ODT
Dynamic ODT
Asynchronous ODTMulti-Purpose Register (MPR) for pre-definedpattern read outZQ calibration for DQ drive and ODT AccessProgrammable partial array self-refresh(PASR)
RESET pin for Power-up sequence and resetfunction
SRT (SelfRefresh Temperature) rangeNormal/Extended/ASR
Programmable output driver impedancecontrol
JEDEC compliant DDR3RH-Free (Row Hammer Free) option isavailable

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
