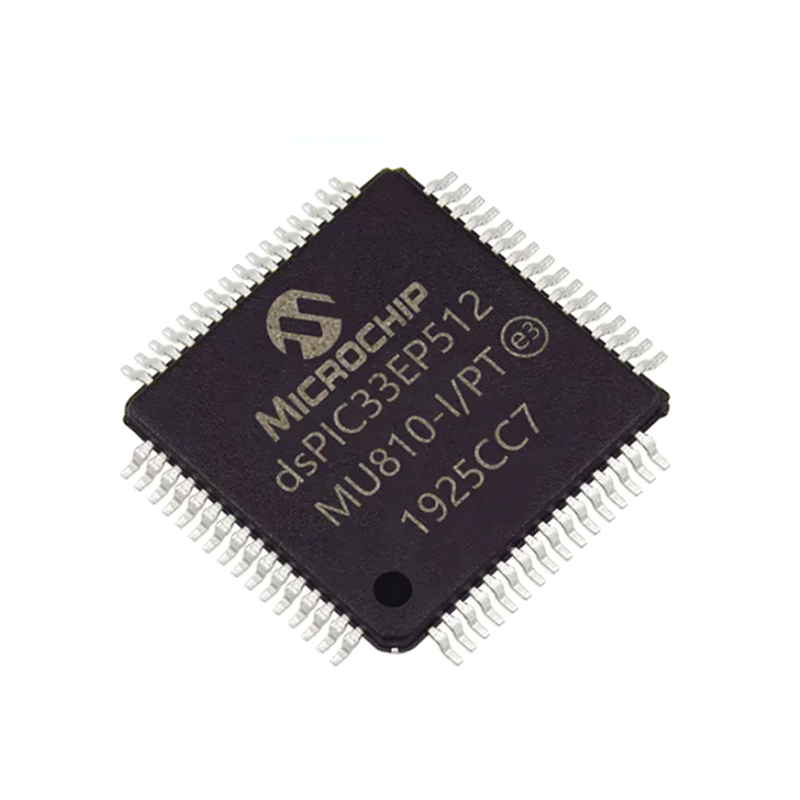

DSP DSC 16Bit Microcontrollers and Digital Signal Controllers with
High-Speed PWM USB and Advanced Analog dsPIC33EP512MU810-I/PF

Operating Conditions
• 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
• 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
Core: 16-Bit dsPIC33E/PIC24E CPU
• Code-Efficient (C and Assembly) architecture
• Two 40-Bit Wide Accumulators
• Single-Cycle (MAC/MPY) with Dual Data Fetch
• Single-Cycle Mixed-Sign MUL Plus Hardware Divide
• 32-Bit Multiply Support
Clock Management
• 2% Internal Oscillator
• Programmable PLLs and Oscillator Clock Sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer
• Fast Wake-up and Start-up
Power Management
• Low-Power Management modes (Sleep, Idle, Doze)
• Integrated Power-on Reset and Brown-out Reset
• 1.0 mA/MHz Dynamic Current (typical)
• 60 µA IPD Current (typical)
High-Speed PWM
• Up to Seven PWM Pairs with Independent Timing
• Dead Time for Rising and Falling Edges
• 8.32 ns PWM Resolution
• PWM Support for:- DC/DC, AC/DC, Inverters, PFC, Lighting- BLDC, PMSM, ACIM, SRM
• Programmable Fault Inputs
• Flexible Trigger Configurations for ADC Conversions
Advanced Analog Features
• Two Independent ADC modules:- One ADC configurable as 10-bit, 1.1 Msps with four
S&H or 12-bit, 500 ksps with one S&H- One 10-bit ADC, 1.1 Msps with four S&H- Eight S&H using both ADC 10-bit modules- 24 analog channels (64-pin devices) up to 32 analog
channels (100/121/144-pin devices)
• Flexible and Independent ADC Trigger Sources
• Comparators:- Up to three Analog Comparator modules- Programmable references with 32 voltage points
Timers/Output Compare/Input Capture
• 27 General Purpose Timers:- Nine 16-bit and up to four 32-bit Timers/Counters- 16 OC modules configurable as Timers/Counters- Two 32-bit Quadrature Encoder Interface (QEI)
modules configurable as Timers/Counters
• 16 IC modules
• Peripheral Pin Select (PPS) to allow Function Remap
• Real-Time Clock and Calendar (RTCC) module
Communication Interfaces
• USB 2.0 OTG-Compliant Full-Speed Interface
• Four UART modules (15 Mbps)- Supports LIN/J2602 protocols and IrDA®
• Four 4-Wire SPI modules (15 Mbps)
• Two ECAN™ modules (1 Mbaud) CAN 2.0B Support
• Two I2C modules (up to 1 Mbaud) with SMBus Support
• Data Converter Interface (DCI) module with Support for
I2S and Audio Codecs
• PPS to allow Function Remap
• Parallel Master Port (PMP)
• Programmable Cyclic Redundancy Check (CRC)
Direct Memory Access (DMA)
• 15-Channel DMA with User-Selectable
Priority Arbitration
• UART, USB, SPI, ADC, ECAN™, IC, OC, Timers,
DCI/I2S, PMP
Input/Output
• Sink/Source 10 mA on All Pins
• 5V Tolerant Pins
• Selectable Open-Drain, Pull-ups and Pull-Downs
• Up to 5 mA Overvoltage Clamp Current
• External Interrupts on All I/O pins
Qualification and Class B Support
• AEC-Q100 REVG (Grade 1 -40ºC to +125ºC) Planned
• AEC-Q100 REVG (Grade 0 -40ºC to +150ºC) Planned
• Class B Safety Library, IEC 60730
Debugger Development Support
• In-Circuit and In-Application Programming
• Five Program and Three Complex Data Breakpoints
• IEEE 1149.2 Compatible (JTAG) Boundary Scan
• Trace and Run-Time Watch
