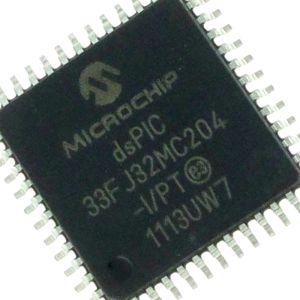

DSP DSC 16bit Digital Signal Controllers 32KB Flash And 2KB SRAM
With Motor Control And Advanced Analog DSPIC33FJ32MC204-I/PT
Operating Conditions
• 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
• 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
Core: 16-bit dsPIC33F CPU
• Code-efficient (C and Assembly) architecture
• Two 40-bit wide accumulators
• Single-cycle (MAC/MPY) with dual data fetch
• Single-cycle mixed-sign MUL plus hardware divide
Clock Management
• 2% internal oscillator
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timer (WDT)
• Fast wake-up and start-up
Power Management
• Low-power management modes (Sleep, Idle, Doze)
• Integrated Power-on Reset and Brown-out Reset
• 1.35 mA/MHz dynamic current (typical)
• 55 μA IPD current (typical)
High-Speed PWM
• Up to four PWM pairs with independent timing
• Dead time for rising and falling edges
• 12.5 ns PWM resolution
• PWM support for:- DC/DC, AC/DC, Inverters, PFC, Lighting- BLDC,
PMSM, ACIM, SRM
• Programmable Fault inputs
• Flexible trigger configurations for ADC conversions
Advanced Analog Features
• ADC module:- Configurable as 10-bit, 1.1 Msps with four
S&H or 12-bit, 500 ksps with one S&H
• Six analog inputs on 28-pin devices and up to
nine analog inputs on 44-pin devices
• Flexible and independent ADC trigger sources
Timers/Output Compare/Input Capture
• Three 16-bit timers/counters. Can pair up two to
make one 32-bit.
• Two Output Capture modules configurable as
timers/counters
• Four Input Capture modules
• Peripheral Pin Select (PPS) to allow function
remap
Communication Interfaces
• One UART module (10 Mbps)
• With support for LIN 2.0 protocols and IrDA®
• One 4-wire SPI module (15 Mbps)
• One I2C™ module (up to 1 Mbaud) with SMBus
support
• PPS to allow function remap
Input/Output
• Sink/Source up to 10 mA (pin specific) for stan
dard VOH/VOL, up to 16 mA (pin specific) for
non-standard VOH1
• 5V-tolerant pins
• Selectable open drain, pull-ups, and pull-downs
• Up to 5 mA overvoltage clamp current
• External interrupts on all I/O pins
Qualification and Class B Support
• AEC-Q100 REVG (Grade 0 -40ºC to +150ºC)
• Class B Safety Library, IEC 60730
Debugger Development Support
• In-circuit and in-application programming
• Two program and two complex data breakpoints
• IEEE 1149.2-compatible (JTAG) boundary scan
• Trace and run-time watch
