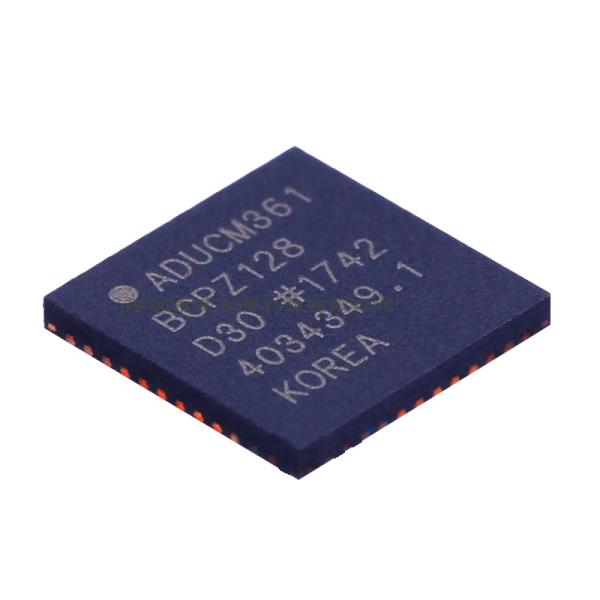

    ADUCM361BCPZ128 single-channel 128kB ADC low-power precision analog microcontroller chip

    Ask Lasest Price
    Brand Name : ADI
    Model Number : ADUCM361BCPZ128
    Price : consult with
    Payment Terms : T/T
    Delivery Time : 5-8DAY
    Certification : ROHS
    Supply Ability : 10000
    • Product Details
    • Company Profile

    ADUCM361BCPZ128 single-channel 128kB ADC low-power precision analog microcontroller chip

    ARM CORTEX M3 Single-channel ADC Low-power Precision Analog Microcontroller Chip ADUCM361BCPZ128


    产品特性
    模拟输入/输出
    双通道,24位ADC (ADuCM360)
    单通道,24位ADC (ADuCM361)
    可编程ADC输出速率(3.5 Hz至3.906 kHz)
    50 Hz/60 Hz同步噪声抑制
    50 SPS连续转换模式
    16.67 SPS单次转换模式
    所有ADC均采用灵活的输入多路复用,输入通道可选
    两个24位多通道ADC(ADC0和ADC1)
    6路差分或11路单端输入通道
    4路内部通道,用于监控DAC,温度传感器,IOVDD/4和
    AVDD/4(仅ADC1)
    可编程增益(1至128)
    均方根(RMS)噪声:52 nV(3.53 Hz时),200 nV(50 Hz时)
    可编程传感器激励电流源
    片内精密基准电压源
    单12位电压输出DAC
    用于4 mA至20 mA环路应用的NPN模式
    微控制器
    ARM Cortex-M3 32位处理器
    串行线下载和调试
    用于唤醒定时器的内部时钟晶体
    具有8路可编程分频器的16 MHz振荡器
    存储器
    128 kB Flash/EE存储器,8 kB SRAM
    通过串行线和UART在线调试/下载
    电源电压范围:1.8 V至3.6 V(最大值)
    MCU主动模式时的功耗
    内核功耗:290 μA/MHz
    内核工作在500 kHz时的系统总电流消耗为1.0 mA(两个
    ADC均打开,输入缓冲器关闭,PGA增益为4,一个SPI
    端口打开,所有定时器均打开)
    省电模式时的功耗:4 μA(唤醒定时器有效)
    片内外设
    UART,I2C和2 × SPI串行I/O
    16位PWM控制器
    19引脚多功能GPIO端口
    2个通用定时器
    唤醒定时器/看门狗定时器
    多通道DMA和中断控制器
    封装和温度范围
    48引脚,7 mm × 7 mm LFCSP封装
    额定工作温度范围:−40°C至+125°C

    Analog Devices Inc.
    Product Category:ARM Microcontrollers - MCU
    RoHS:
    ADUCM361
    SMD/SMT
    LFCSP-48
    ARM Cortex M3
    128 kB
    32 bit
    24 bit
    16 MHz
    19 I/O
    8 kB
    1.8 V
    3.6 V
    - 40 C
    + 125 C
    Tray
    Brand:Analog Devices
    Data RAM Type:SRAM
    Development Kit:EVAL-CN0319-EB1Z
    Moisture Sensitive:Yes
    Number of ADC Channels:11 Channel
    Number of Timers/Counters:3 Timer
    Processor Series:ARM Cortex
    Product Type:ARM Microcontrollers - MCU
    Program Memory Type:Flash
    260
    Subcategory:Microcontrollers - MCU
    Unit Weight:0.860579 oz

    ADUCM361BCPZ128 single-channel 128kB ADC low-power precision analog microcontroller chip

    ADUCM361BCPZ128 single-channel 128kB ADC low-power precision analog microcontroller chip

    Packaging and transportation instructions

    - According to the standard export packaging.

    Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
