    1Gb SPI NAND Flash Memory 3V 104MHz WSON-8 MX35LF1GE4AB-Z4I

    Ask Lasest Price
    Brand Name : ICMAX
    Model Number : MX35LF1GE4AB-Z4I
    Certification : RoHS
    Price : consult
    Payment Terms : T/T,Western Union
    Supply Ability : 10000
    Delivery Time : 5~8day
    • Product Details
    • Company Profile

    1Gb SPI NAND Flash Memory 3V 104MHz WSON-8 MX35LF1GE4AB-Z4I

    3V 1Gb-bit Serial NAND Flash Memory MX35LF1GE4AB-Z4I
    1. FEATURES
    • 1Gb SLC NAND Flash
      • Bus: x4
      • Page size: (2048+64) byte
      • Block size: (128K+4K) byte
    • Fast Read Access
      • Supports Random data read out by x1 x2 & x4 modes, (1-1-1,1-1-2, 1-1-4)
      • Latency of array to register: 25us
      • Frequency: 104MHz
    • Page Program Operation
      • Page program time: 300us (typ)
    • Block Erase Operation
      • Block erase time: 1ms (typ.)
    • Single Voltage Operation:
      • VCC: 2.7 to 3.6V
    • BP bits for block group protection
    • Low Power Dissipation
      • Max 30mA Active current (Read/Program/Erase)
    • Sleep Mode
      • 50uA (Max) standby current
    • High Reliability
      • Program / Erase Endurance: Typical 100K cycles(with internal 4-bit ECC per (512+16) Byte
      • Data Retention: 10 years
    • Wide Temperature Operating Range-40°C to +85°C
    • Package:8-WSON (8x6mm)
    • All packaged devices are RoHS Compliant and Halogen-free.

    Note 1. Please refer to the tRD_ECC and tPROG_ECC specifications if internal ECC function is turned on.

    Note 2. Which indicates the number of I/O for command, address and data.

    2. GENERAL DESCRIPTIONS

    The MX35LF1GE4AB is a 1Gb SLC NAND Flash memory device with Serial interface. The memory array of this device adopted the same cell architecture as the parallel NAND, however implementing the industry standard serial interface. An internal 4-bit ECC logic is implemented in the chip, which is enabled by default. The internal ECC can be disabled or enabled again by command. When the internal 4-bit ECC logic is disabled, the host side needs to handle the 4-bit ECC by host micro controller.

    Product Specifications
    Part NumberDensityOrganizationVCC RangePackageTemperature Grade
    MX35LF1GE4AB-Z4I1Gbx43V8-WSON(E.P.=3.4x4.3mm)Industrial
    Pin Descriptions
    SYMBOLDESCRIPTION
    CS#Chip Select
    SI/SIO0Serial Data Input (for 1 x I/O)/ Serial Data Input& Output (for 2xI/O or 4xI/O read mode)
    SO/SIO1Serial Data Output (for 1 x I/O)/ Serial Data Input& Output (for 2xI/O or 4xI/O read mode)
    SCLKClock Input
    WP#/SIO2Write protection: connect to GND or Serial Data Input & Output (for 4xI/O read mode)
    HOLD#/SIO3Hold or Serial Data Input & Output (for 4xI/O read mode)
    VCC+ 3V Power Supply
    GNDGround

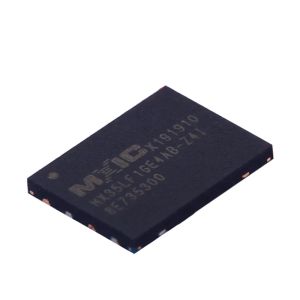

    Product Images
    Packaging & Shipping

    Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
