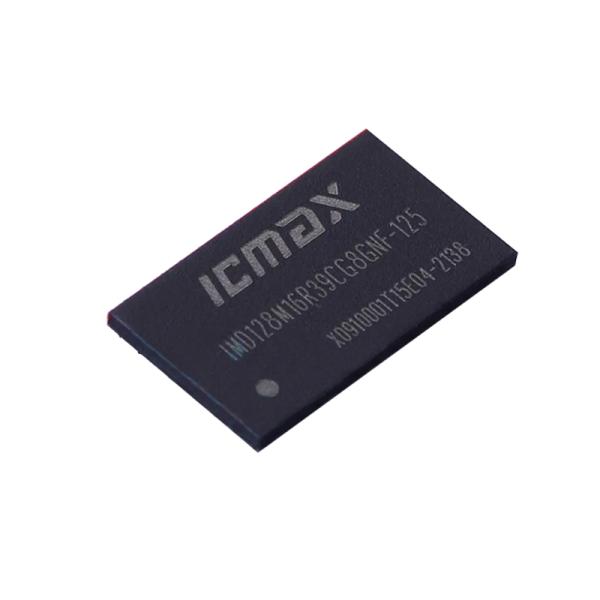

DDR3 SDRAM Memory Chip IMD128M16R39CG8GNF-125

Ask Lasest Price
Brand Name :	ICMAX
Model Number :	IMD128M16R39CG8GNF-125
Certification :	RoHS
Price :	consult
Payment Terms :	T/T,Western Union
Supply Ability :	10000
Delivery Time :	5～8day

Add to Cart

Product Details
Company Profile

DDR3 SDRAM Memory Chip IMD128M16R39CG8GNF-125

DDR3 SDRAM512M4 – 64 Meg x 4 x 8 Banks256M8 – 32 Meg x 8 x 8 Banks

Features

VDD = VDDQ = 1.5V ±0.075V
1.5V center-terminated push/pull I/O
Differential bidirectional data strobe
8n-bit prefetch architecture
Differential clock inputs (CK, CK#)
8 internal banks
Nominal and dynamic on-die termination (ODT)for data, strobe, and mask signals
Programmable CAS READ latency (CL)
Posted CAS additive latency (AL)
Programmable CAS WRITE latency (CWL) based ontCK
Fixed burst length (BL) of 8 and burst chop (BC) of 4(via the mode register set [MRS])
Selectable BC4 or BL8 on-the-fly (OTF)
Self refresh mode
TC of 0°C to 70°C
Self refresh temperature (SRT)
Automatic self refresh (ASR)
Write leveling
Multipurpose register
Output driver calibration

Options

1. Marking
- Configuration
  - 512 Meg x 4 512M4
  - 256 Meg x 8 256M8
  - 128 Meg x 16 128M16

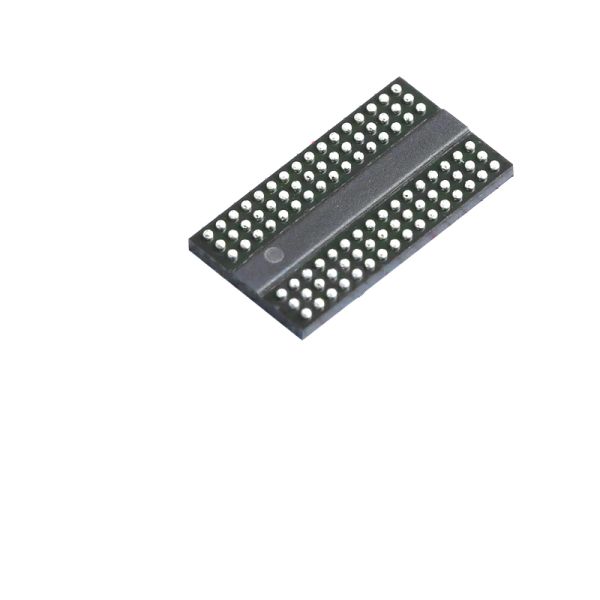

- FBGA package (Pb-free) – x4, x8
  - 78-ball (8mm x 10.5mm) Rev. K /
  - 78-ball (8mm x 10.5mm) Rev. N /
- FBGA package (Pb-free) – x16
  - 96-ball (8mm x 14mm) Rev. K GNF
  - 96-ball (8mm x 14mm) Rev. N /
- Timing – cycle time
  - 938ps @ CL = 14 (DDR3-2133) -093
  - 1.07ns @ CL = 13 (DDR3-1866) -107
  - 1.25ns @ CL = 11 (DDR3-1600) -125
  - 1.5ns @ CL = 9 (DDR3-1333) -15E
  - 1.87ns @ CL = 7 (DDR3-1066) -187E
- Operating temperature
  - Commercial (0°C ≤ TC ≤ +70°C) None
  - Industrial (–40°C ≤ TC ≤ +95°C) IT
- Revision :K / :N

Parameters

Parameter	512 Meg x 4	256 Meg x 8	128 Meg x 16
Configuration	64 Meg x 4 x 8 banks	32 Meg x 8 x 8 banks	16 Meg x 16 x 8 banks
Refresh count	8K	8K	8K
Row addressing	32K (A[14:0])	32K (A[14:0])	16K (A[13:0])
Bank addressing	8 (BA[2:0])	8 (BA[2:0])	8 (BA[2:0])
Column addressing	2K (A[11, 9:0])	1K (A[9:0])	1K (A[9:0])
Page size	1KB	1KB	2KB

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.

Product Tags:


*From:	Your email address is incorrect!
*To:	Shenzhen Filetti Technology Co., LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!
