DDR3 SDRAM Memory Chip 1GB 1.5V FBGA-96 8K Refresh IMD64M16R38AG8GNF

Ask Lasest Price
Brand Name :	ICMAX
Model Number :	IMD64M16R38AG8GNF
Certification :	RoHS
Price :	consult
Payment Terms :	T/T,Western Union
Supply Ability :	10000
Delivery Time :	5～8day

Add to Cart

Product Details
Company Profile

DDR3 SDRAM Memory Chip 1GB 1.5V FBGA-96 8K Refresh IMD64M16R38AG8GNF

DDR SDRAM Memory Chip IMD64M16R38AG8GNF

Parameters

	256 Meg x 4	128 Meg x 8	64 Meg x 16
Configuration	32 Meg x 4 x 8 banks	16 Meg x 8 x 8 banks	8 Meg x 16 x 8 banks
Refresh count	8K	8K	8K
Row addressing	16K (A[13:0])	16K (A[13:0])	8K (A[12:0])
Bank addressing	8 (BA[2:0])	8 (BA[2:0])	8 (BA[2:0])
Column addressing	2K (A[11, 9:0])	1K (A[9:0])	1K (A[9:0])

Features

VDD = VDDQ = +1.5V ±0.075V
1.5V center-terminated push/pull I/O
Differential bidirectional data strobe
8n-bit prefetch architecture
Differential clock inputs (CK, CK#)
8 internal banks
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
CAS (READ) latency (CL): 5, 6, 7, 8, 9, 10, or 11
POSTED CAS ADDITIVE latency (AL): 0, CL - 1, CL - 2
CAS (WRITE) latency (CWL): 5, 6, 7, 8, based on tCK
Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
Selectable BC4 or BL8 on-the-fly (OTF)
Self refresh mode
TC of 0°C to 95°C
- 64ms, 8,192 cycle refresh at 0°C to 85°C
- 32ms at 85°C to 95°C
Clock frequency range of 300–800 MHz
Self refresh temperature (SRT)
Automatic self refresh (ASR)
Write leveling
Multipurpose register
Output driver calibration

Options

ICMAX Memory
Configuration
- 256 Meg x 4
- 128 Meg x 8
- 64 Meg x 16
Product Code
- DDR3
Density
- 1 Gigabyte
Voltage/Refresh
- 1.5V/8k refresh
FBGA package (Pb-free) - x4, x8
- 78-ball (8mm x 11.5mm) Rev. E, F
- 78-ball (9mm x 11.5mm) Rev. D
- 78-ball (8mm x 10.5mm) Rev. J
- 86-ball (9mm x 15.5mm) Rev. B
FBGA package (Pb-free) - x16
- 96-ball (8mm x 14mm) Rev. E
Timing - cycle time
- 1.25ns @ CL = 11 (DDR3-1600)
- 1.25ns @ CL = 10 (DDR3-1600)
- 1.5ns @ CL = 10 (DDR3-1333)
- 1.5ns @ CL = 9 (DDR3-1333)
- 1.87ns @ CL = 8 (DDR3-1066)
- 1.87ns @ CL = 7 (DDR3-1066)

Marking

IMD256M4128M864M16Dxx8G**G**Z**GNF-125-125E-15-15E-187-187E

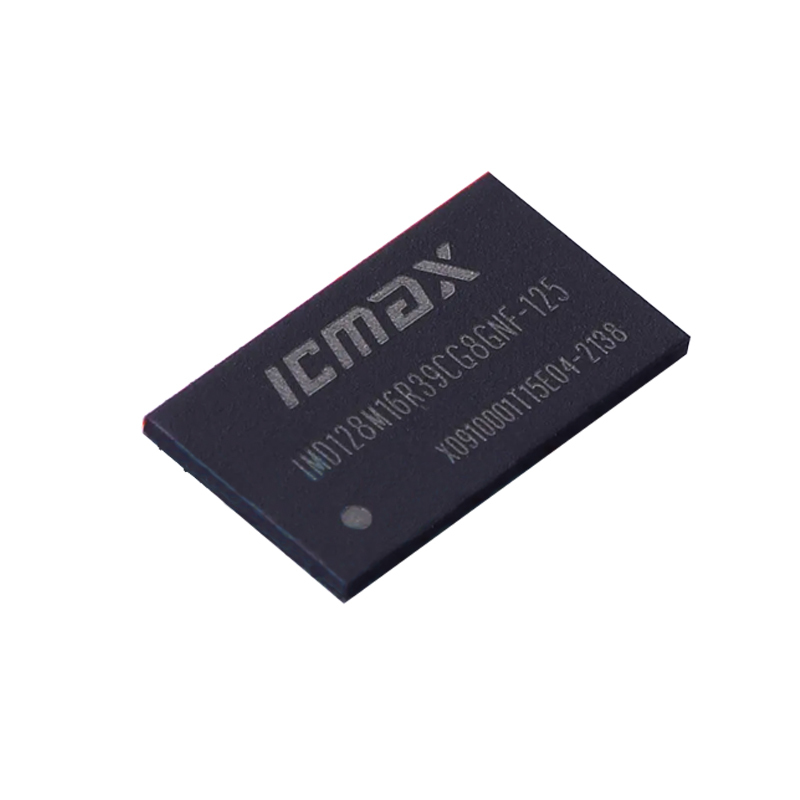

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
