    150lm 80Ra 6500K SMD 3014 Smd Led 3030 1w

    Ask Lasest Price
    Brand Name : Refond
    Model Number : SMD 3030
    Certification : CE RoHS
    Payment Terms : T/T, Western Union, MoneyGram
    MOQ : 1 Reel
    • Product Details
    • Company Profile

    150lm 80Ra 6500K SMD 3014 Smd Led 3030 1w

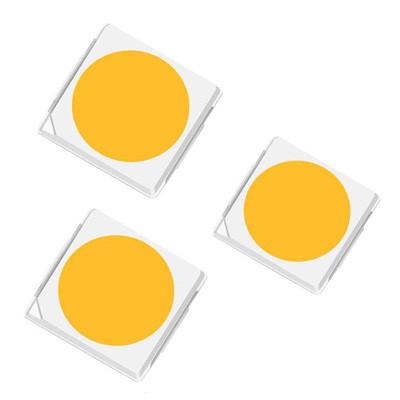

    Refond SMD LED 3030

    Original Refond SMD LED 3030 LED Package High Lumens 140-150lm 80Ra CCT 2700-6500K for General Lighting

    In 2000, Refond, the first SMD LED manufacturer in China, was founded by several young men who were aware of the prosper future of LED and determined to break the technology monopoly. After 17 years of hard working, Refond still ranks on the top level with many first creations, such as the high power ceramic, silicon encapsulation, TV backlight module, automotive LED module. Meanwhile, Refond isapproved by international customers due to its high quality products covering from lighting, backlight, home appliances, automotive, security applications. In the next 10 years, Refond will drive to more fields with the core of innovative technology, like intelligent lighting, auto application, laser, healthy devices, etc.

    We ETSE offer all kinds of refond LED diodes, such as SMD 2835, SMD3030, SMD 3014, SMD 5050, 5050RGB, High power LED and so on.

    Refond SMD LED 3030

    ParameterSymbolRatingMin.TypicalMax.UnitTest Condition
    Power DissipationPd900mWIf = 150mA
    Forward CurrentIf150mA
    Peak Forward CurrentIfp240mA
    Forward VoltageVf5.8-6.4VIf = 150mA
    Lumen Flux140150lmIf = 150mA
    Color TemperatureCCT2700-6500K
    Color Rendering IndexRa80%If = 150mA
    Reverse CurrentIR1μAVR = 5V
    Junction TemperatureTj125
    Soldering TemperatureTsol260℃ for 10 sec
    Operation TemperatureTopr-40℃ ~ 85
    Storage TemperatureTstg-40℃ ~ 100
    Viewing Angle2 θ1/2120degreeIf = 150mA
    Thermal ResistanceRth(j-s)12℃/W




    Applications
